AMD Athlon 64 X2 (Socket AM2)

Core: Windsor (90 nm); Data width: 64 bit; L1 cache: (2x64/2x64) KB; HT: 1000 MHz; Package: mPGA-940
n.n.	Model	Frequency	L2 cache	TDP	Additional description
	ADA3800IAA5CU	2000 MHz	2x512 MB	89 W
	ADA4000IAA6CS	2000 MHz	2x1 MB	89 W
1	ADA4200IAA5CU; NDB4F	2200 MHz	2x512 MB	89 W	ADA4200IAA5CU; NDB4F; 0638WPMW; © 2005 AMD; MALAYSIA
	ADA4400IAA6CS	2200 MHz	2x1 MB	89 W
2	ADA4600IAA5CU; NDBEF	2400 MHz	2x512 MB	89 W	ADA4600IAA5CU; NDBEF; 0647EAD; © 2005 AMD; CHINA
	ADA4800IAA6CS	2400 MHz	2x1 MB	89 W
	ADA5000IAA5CS ADA5000IAA5CU	2600 MHz 2600 MHz	2x512 MB 2x512 MB	89 W 89 W
	ADA5000IAA5CZ	2600 MHz	2x512 MB	89 W
3	ADA5200IAA6CS; CCBIF	2600 MHz	2x1 MB	89 W	ADA5200IAA6CS; CCBIF; 0705XPMW; © 2005 AMD; MALAYSIA
	ADA5200IAA6CZ	2600 MHz	2x1 MB	89 W
	ADA5400IAA5CZ	2800 MHz	2x512 MB	89 W
4	ADA5600IAA6CZ; CCB8F	2800 MHz	2x1 MB	89 W	ADA5600IAA6CZ; CCB8F; 0712TPCW; © 2005 AMD; MALAYSIA
5 6	ADA6000IAA6CZ; CCB8F ADX6000IAA6CZ; CCB8F	3000 MHz 3000 MHz	2x1 MB 2x1 MB	89 W 125 W	ADA6000IAA6CZ; CCB8F; 0749BPMW; © 2005 AMD; GERMANY/MALAYSIA ADX6000IAA6CZ; CCB8F; 0719XPMW; © 2005 AMD; GERMANY/MALAYSIA
7	ADX6400IAA6CZ; CCB8F; Black Edition	3200 MHz	2x1 MB	125 W	ADX6400IAA6CZ; CCB8F; 0729EPMW; © 2005 AMD; GERMANY/MALAYSIA

	Energy-Efficient
8	ADO3600IAA4CU; LFCBF	2000 MHz	2x256 KB	65 W	ADO3600IAA4CU; LFCBF 0704FAF; © 2005 AMD; CHINA
9	ADO3800IAA5CS ADO3800IAA5CU; LEDBF	2000 MHz	2x512 KB	65 W	ADO3800IAA5CU; LEDBF 0646BAE; © 2005 AMD; CHINA
	ADO3800IAA5CZ
	ADO4000IAA6CS	2000 MHz	2x1 MB	65 W
10	ADO4200IAA5CU; LDB8F	2200 MHz	2x512 KB	65 W	ADO4200IAA5CU; LDB8F 0705RPMW; © 2005 AMD; MALAYSIA
	ADO4400IAA6CS	2200 MHz	2x1 MB	65 W
	ADO4600IAA5CS ADO4600IAA5CU	2400 MHz 2400 MHz	2x512 KB 2x512 KB	65 W 65 W
	ADO4600IAA5CZ	2400 MHz	2x512 KB	65 W
	ADO4800IAA6CS	2400 MHz	2x1 MB	65 W
	ADO5000IAA5CZ	2600 MHz	2x512 KB	65 W
11	ADO5200IAA6CZ; CCB8F	2600 MHz	2x1 MB	65 W	ADO5200IAA6CZ; CCB8F 0724WPMW; © 2005 AMD; GERMANY/MALAYSIA

	ADD3800IAA5CU ADD3800IAT5CU	2000 MHz	2x512 KB 2x512 KB	35 W 35 W

Core: Brisbane (65 nm); Data width: 64 bit; L1 cache: (2x64/2x64) KB; L2 cache: (2x512) KB; HT: 1000 MHz; Package: mPGA-940
n.n.	Model	Frequency	TDP	Additional description
	ADO3600IAA5DD	1900 MHz	65 W
	ADO3600IAA5DL	1900 MHz	65 W
12	ADO4000IAA5DD; CAA4G	2100 MHz	65 W	ADO4000IAA5DD; CAA4G 0817FPMW; © 2005 AMD; GERMANY/MALAYSIA
13	ADO4200IAA5DD; CAARG	2200 MHz	65 W	ADO4200IAA5DD; CAARG 0736BPFW; © 2005 AMD; MALAYSIA
	ADO4200IAA5DO	2200 MHz	65 W
14	ADO4400IAA5DD; CAALG	2300 MHz	65 W	ADO4400IAA5DD; CAALG 0713BAF; © 2005 AMD; CHINA
15	ADO4400IAA5DO	2300 MHz	65 W
	ADO4600IAA5DO	2400 MHz	65 W
16	ADO4800IAA5DD; CAA4G	2500 MHz	65 W	ADO4800IAA5DD; CAA4G 0732DPCW; © 2005 AMD; MALAYSIA
17	ADO5000IAA5DD; CAAPG	2600 MHz	65 W	ADO5000IAA5DD; CAAPG 0727AAE; © 2005 AMD; GERMANY/CHINA
18	ADO5000IAA5DO; NAAFG	2600 MHz	65 W	ADO5000IAA5DO; NAAFG 0827BPDW; © 2005 AMD; MALAYSIA
	ADO5000IAA5DS Black Edition	2600 MHz	65 W
	ADO5200IAA5DD	2700 MHz	65 W
19	ADO5200IAA5DO; CAA9G	2700 MHz	65 W	ADO5200IAA5DO; CAA9G 0734CPMW; © 2005 AMD; GERMANY/MALAYSIA

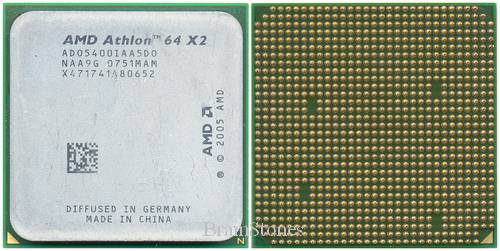

	ADO5400IAA5DO	2800 MHz	65 W
	ADO5400IAA5DS Black Edition	2800 MHz	65 W
20	ADO5600IAA5DO; NAAFG	2900 MHz	65 W	ADO5600IAA5DO; NAAFG 0901EPMW; © 2005 AMD; MALAYSIA
	ADA5800IAA5DO	3000 MHz	89 W
	ADV6000IAA5DO	3100 MHz	89 W


1	ADA4200IAA5CU		2	ADA4600IAA5CU; NDBEF		3	ADA5200IAA6CS; CCBIF


4	ADA5600IAA6CZ; CCB8F		5	ADA6000IAA6CZ; CCB8F		6	ADX6000IAA6CZ; CCB8F


7	ADX6400IAA6CZ; CCB8F		8	ADO3600IAA4CU; LFCBF		9	ADO3800IAA5CU; LEDBF


10	ADO4200IAA5CU; LDB8F		11	ADO5200IAA6CZ; CCB8F		12	ADO4000IAA5DD; CAA4G

				W/O LID
13	ADO4200IAA5DD; CAARG	14	ADO4400IAA5DD; CAALG	15	ADO4400IAA5DO


16	ADO4800IAA5DD; CAA4G	17	ADO5000IAA5DD; CAAPG	18	ADO5000IAA5DO; NAAFG


19	ADO5200IAA5DO; CAA9G	20	ADO5600IAA5DO; NAAFG
